"The Doohickey"

Engine Idler Lever Counterbalance Upgrade Kit

As many have heard from either the web or other KLR enthusiasts, the bulletproof design of Kawasaki's KLR engines have but one flaw. This flaw happens to be within the tension system for the counterbalance chain. The problem arises when the poorly made stock idler shaft lever (aka "the doohickey") fractures, splits, or cracks just from the normal wear and tear of riding. This eventually causes the chain to put excessive tension on the spring (which eventually breaks in due time as well) therefore leaving the chain "flopping" around inside the case to cause expensive damage to other parts or even seizing the motor. But, with this new upgrade kit, you can be assured peace of mind. This kit provides all the necessary parts to replace the poorly made stock doohickey and springs with higher quality.

  • MADE IN THE USA WITH 100% ISO CERTIFIED MATERIAL

  • SPRINGS ARE ISO CERTIFIED AND ARE MADE OUT OF STAINLESS STEEL RATED AT 400 DEGREES FAHRENHEIT

  • LEVER IS MADE OUT OF 17-4 STAINLESS STEEL, HEAT TREATED TO CONDITION H1150

  • TENSILE: 145KSI

  • YIELD: 125KSI

  • HARDNESS IS ISO CERTIFIED AT 33HRC TO PREVENT DISTORTION WHEN TIGHTNED

WARRANTY IS THE SAME AS KAWASAKI, 12,000 MILES OR 1 YEAR AND EXTENDED IF CUSTOMER HAS KAWASAKI'S EXTENDED WARRANTY

CHOOSE YOUR PACKAGE

Doohickey with Coil Spings
Package #: 13168-1436-6AS
Price: $44.95






Doohickey with Coil Springs

This Includes:

  • DOOHICKEY #13168-1436-3AS

  • 35mm Stainless Steel Spring #032-0035

  • 38mm Stainless Steel Spring #032-0038

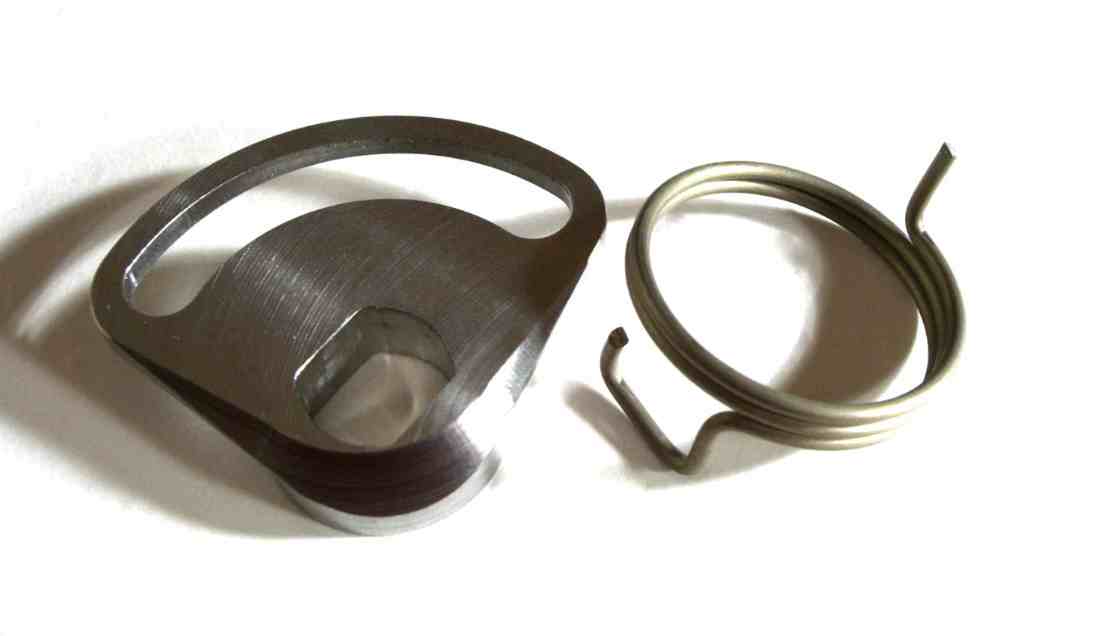

Doohickey with Torsion Sping
Package #: 13168-1436-5AS
Price: $44.95


Doohickey with Torsion Spring



This Includes:

  • DOOHICKEY #13168-1436-3AS

  • Torsion Spring #060-3174



CLICK HERE FOR INSTRUCTIONS ON HOW TO INSTALL THE TORSION SPRING

Click on Articles and then Installing a Torsion Spring

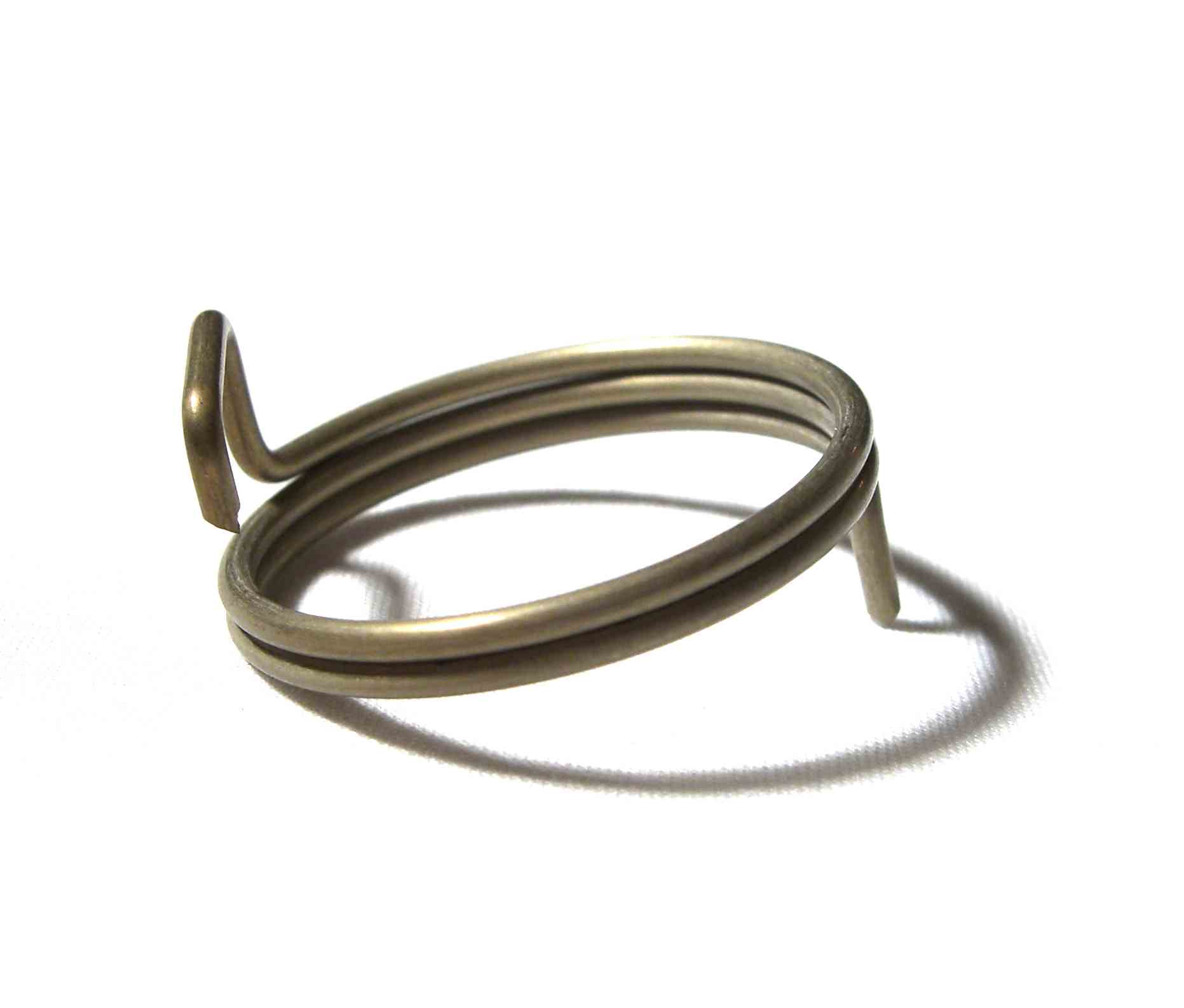

Torsion Sping
Part #: 060-3174
Price: $13.95

Torsion Spring

Replace that doohickey adjustment coil spring with a quality Torsion Spring

Torsion Spring fits all Afrika Singles and North American KLR650s 87'-07'



CLICK HERE FOR INSTRUCTIONS ON HOW TO INSTALL THE TORSION SPRING

Click on Articles and then Installing a Torsion Spring

Doohickey Tools
Package #: 060-3000
Price: $59.95



Doohickey Tools

This Includes:

  • 2 Gaskets #11050-1693AS and #11060-1692AS

  • Rotor Puller #032-0004

  • 32mm Wrench #57001-1184AS





.
